The 3D city

Schema City's over-the-top extra: the same schema as a glowing 3D city, for demos and for fun.

Before the city plan, Schema City was a city: buildings on glowing circuit boards, traces arcing between them, and a camera that flies in the first time it opens. It is the same schema, more fun to show a room than to work in. It still works in full, with the same panels around it: the inspector, List, Tree, Matrix, Data Types, Findings, Compare, Impact, Editor and Present. A site can switch it on with one setting.

Try the City demo in your browser. It needs no Umbraco install.

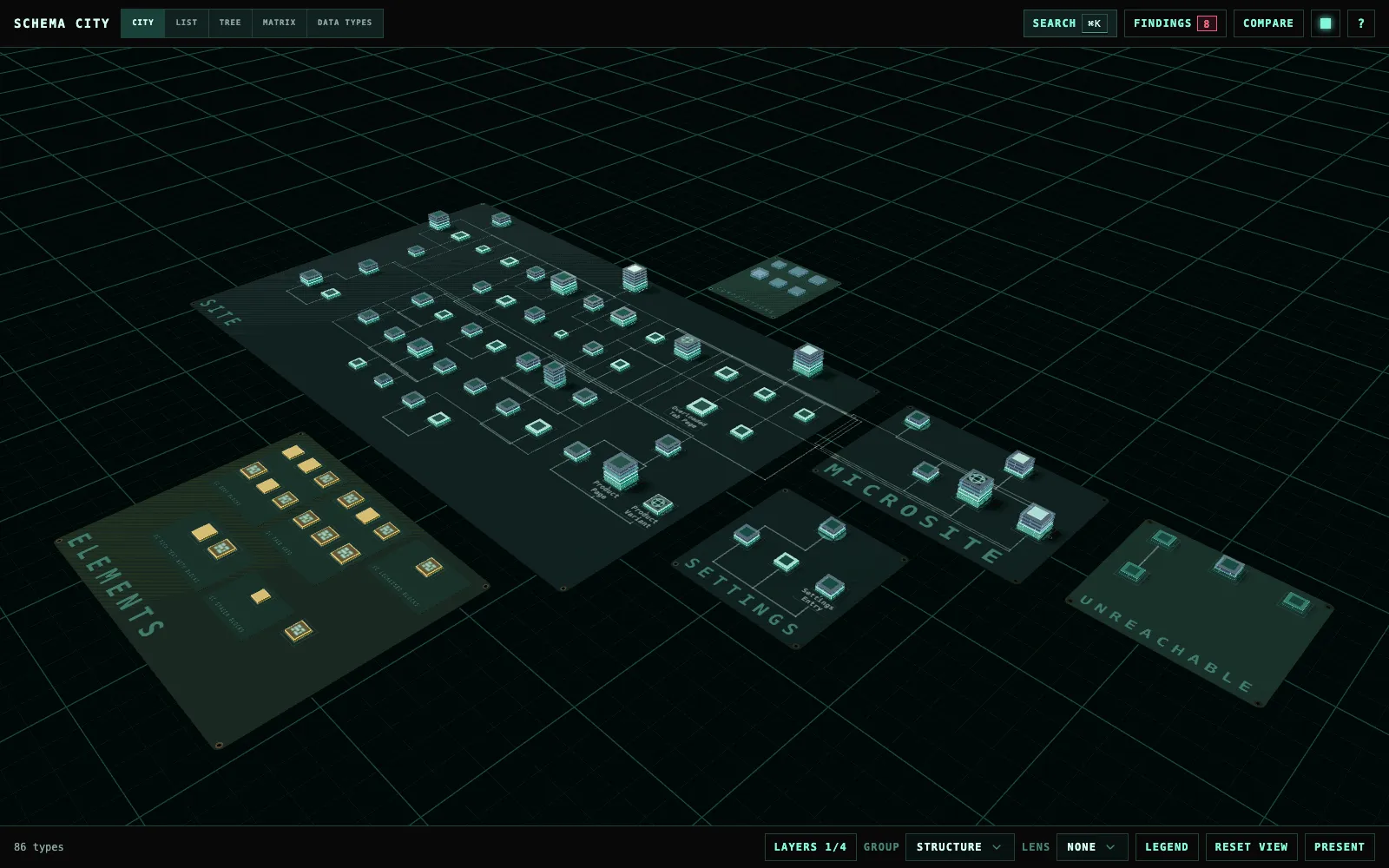

The city overview, with a circuit board for each root, Site, Microsite and Settings, beside boards for Compositions, Elements and Unreachable.

Turn it on

Set Variant to City in appsettings.json and restart the site:

{
  "SchemaCity": {
    "Variant": "City"
  }
}

The environment variable is SchemaCity__Variant=City.

It applies to every user. There is no per-user switch.
The Relationships tab in the Document Type editor shows the city too.
Clean is the default and shows the city plan. Any other value also shows the plan.
Earlier versions had only the city, so after an upgrade users open on the city plan unless the site sets this.

The city needs WebGL. Where the browser cannot start it, the canvas says so and the header and the other views keep working.

How the city shows your schema

In the city	In your schema
Board	A type allowed at root and everything it can create. Element Types, compositions and unreachable types get a board each.
Building	A Document Type or Element Type. Bigger buildings have more properties.
Floor	A property group
Trace	An allowed child, a composition, a block target or a picker reference

Move the camera

The city opens on a raised three-quarter view of the whole schema. The first time you open it in a browser, the camera flies in and a short hint shows over the canvas. The Relationships tab skips that opening. The flight respects your reduced-motion setting.

From there you can orbit, pan, move toward any point and come down to street level. If you lose the city, press Home or choose Reset view in the footer to frame it again. Focusing a type, leaving focus and Home fly the camera to the new framing.

Action	Control
Orbit	Drag, or `[` and `]`
Tilt	Drag, or `Page Up` and `Page Down`
Move toward the cursor, or away	Mouse wheel
Pan along the ground	Right-drag, Shift-drag (works on a trackpad), `W` `A` `S` `D` or arrow keys
Rise and descend	`R`, `F`
Move faster	Hold `Shift` with a movement key
Reframe the city or leave focus	`Home`, or Reset view in the footer

The keys that work in both looks, such as Search, the layers and the views, are on Navigate the city plan. Press ? in the city for its full list.

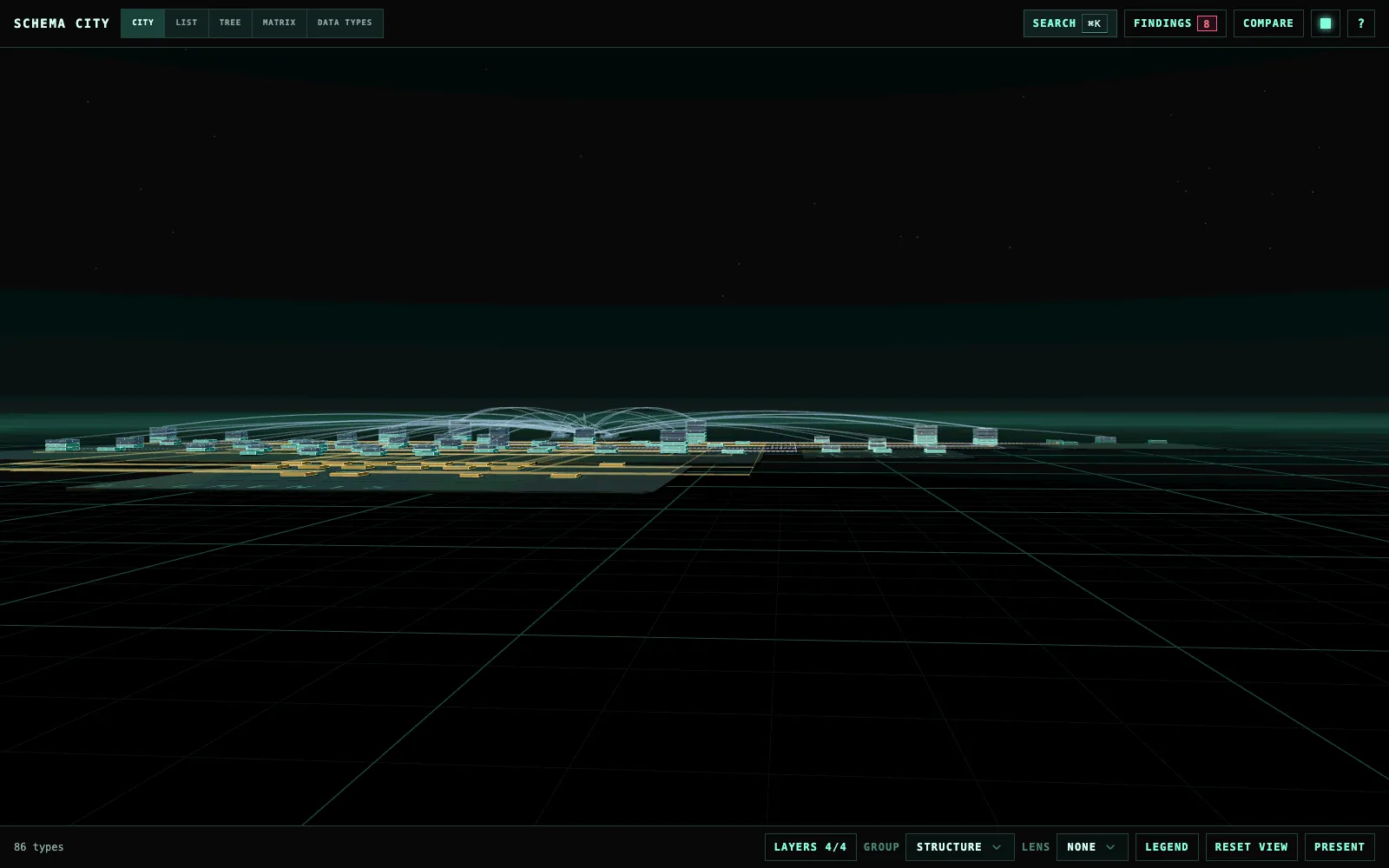

The city seen from low over the ground, after the camera has come down with the free camera controls.

Read the boards and buildings

The city is drawn as circuit boards. Each board is a district of related types, and each building on it is a type.

What you see	What it means
A bigger building	More properties. The side grows with the square root of the count, so a few large types do not push the city apart.
A slab	One property group. A thin board between slabs marks where a new tab starts.
Lit windows	The group’s properties
Translucent azure slabs	Groups that come from a composition. A composition nothing creates content from is made of these alone.
A low amber block	An Element Type
Pins along the base	Direct connections. Allowed parents are on the north edge, allowed children on the south, links out on the east and links in on the west.
A lit lid	The type has a template
A dot on the roof	The type varies by culture. A second dot means it varies by segment too.
A gold strip on a board’s edge	A lane of traces leaving for another board
A small ring on a trace	A point where the trace turns

Legend in the footer lists these too.

Hovering or selecting a building shows its direct connections on every layer, including the layers you have switched off.

Read the names on the boards

Each type’s name is printed on the board beside its building. From the overview, most names are already readable, and the floating label and the inspector always have the full name.

Where names would collide, larger types and types with more content print first. Move closer and the rest appear.
Names stay put while you pan, orbit and hover.
A long name wraps onto two lines, then drops words its board already says, such as “Element” on the Elements board. It is never cut inside a word, and never shortened so far that it could be confused with another name on the same board.
A name too small to read fades out, and fades back in as you come closer.
In presentation mode, printed names keep their larger size longer as the camera comes closer, and the overview still prints every name that reads.

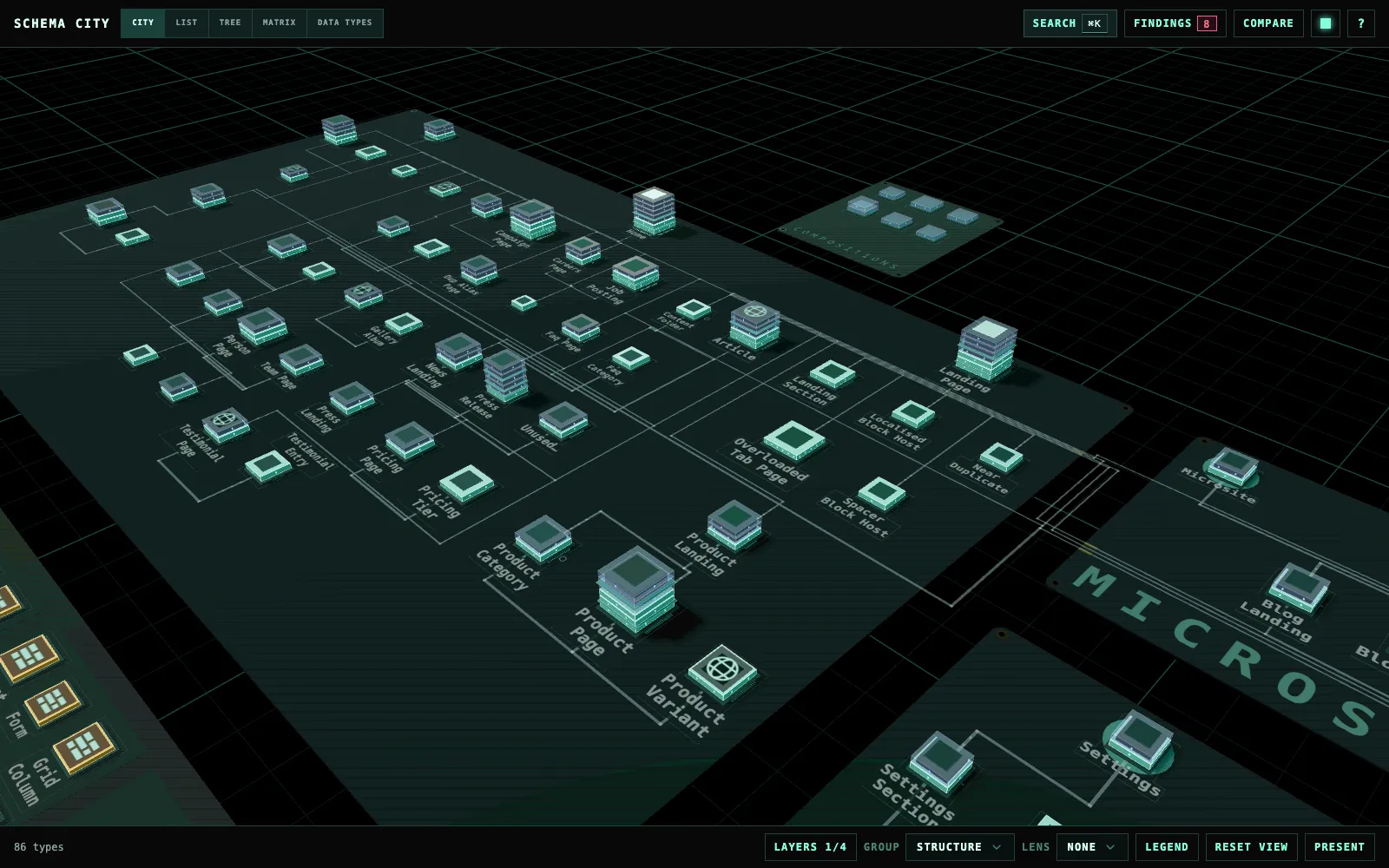

Closer in on the Site board, with each type’s name printed beside its building and traces leaving for the Microsite board.

Where its tools are

Layers, Group, Lens, Legend and Reset view are in the footer while the City view is on. Where the workspace is narrower than about 960 px, they fold into one City tools menu. A lens’s colour key, and the key for what Show in city lit, sit in the top-left corner of the canvas.

On the Elements board, each block editor’s Element Types stand on a lighter patch with the editor’s Data Type name printed along its south edge, even when the editor offers only one type. A type no block editor offers stands on bare board.

Change the phosphor colour

The square colour button in the header opens the Phosphor menu, which sets the colour the whole screen glows in: Green, which is the default, Orange, Yellow, Blue, Umbraco, Magenta or Grey. The choice is kept per browser.
